Solid-liquid Separating Agitated Nutsche Filter Dryer Recycling Both Soild and Liquid
Product description:

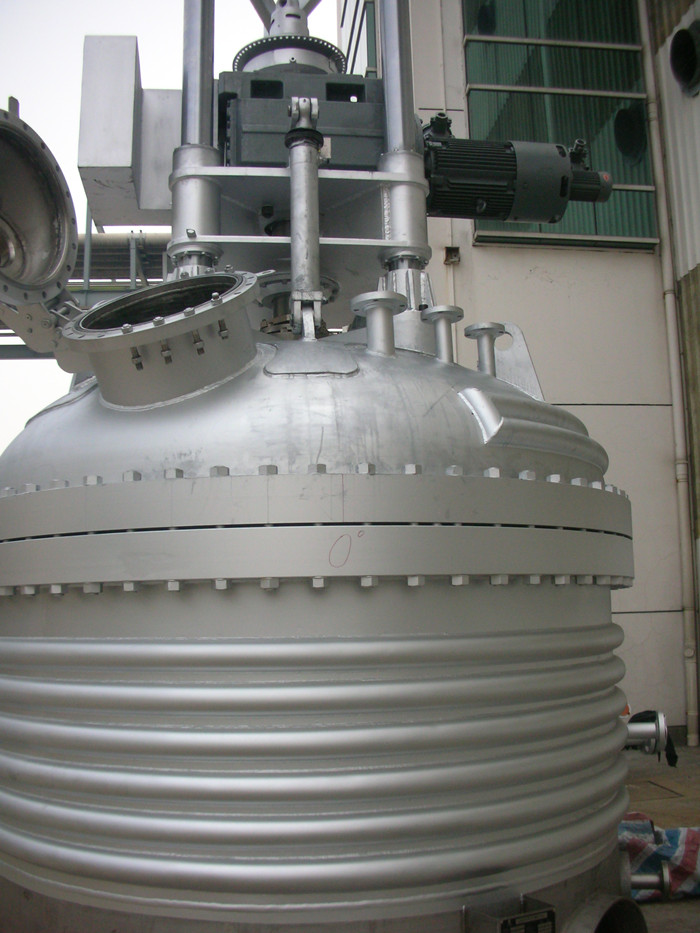

GXG series three in one machine is a solid-liquid separation equipment with various functions such as filtration, washing, drying reaction and residue discharging automatically.
Product Specifications:
| Model | Filtration area ㎡ | Shell
diameter (mm) | Work
pressure (Mpa) | Nominal
volume (m3) | Filter cake
height (mm) |
| GXG-600 | 0.28 | 600 | -0.1~0.3 | 0.2 | 150 |
| GXG-800 | 0.5 | 800 | -0.1~0.3 | 0.5 | 180 |
| GXG-1200 | 1.1 | 1200 | -0.1~0.3 | 1.3 | 250 |
| GXG-1600 | 2.0 | 1600 | -0.1~0.3 | 2.8 | 350 |
| GXG-2000 | 3.1 | 2000 | -0.1~0.3 | 4.8 | 400 |
| GXG-2400 | 4.5 | 2400 | -0.1~0.3 | 6.5 | 450 |
| GXG-2600 | 5.3 | 2600 | -0.1~0.3 | 8.7 | 450 |
Application:
It is widely used in fine chemical, petroleum, foodstuff, printing, pharmaceutical industries, Glyphosate, Penicillin and so on.
Product competitive advantage:
1. Stirring, mixing , beating , reacting, washing and multiform process working can be practiced in the body and it can carry out full automatic control.
2. Discharge valve can discharge automatically which can lower labor intensity.
3. Anticorrosion three in one system is made of special material which can be suitable for multiform anticorrosion medium.
4. Especially suitable for the material that large solid content, and recovering liquid phase and solid phase respectively.
5. Adopting horizontal placing filter material, one time completely filtering no remains. Filter material has unique sealing structure which is easy to be changed.

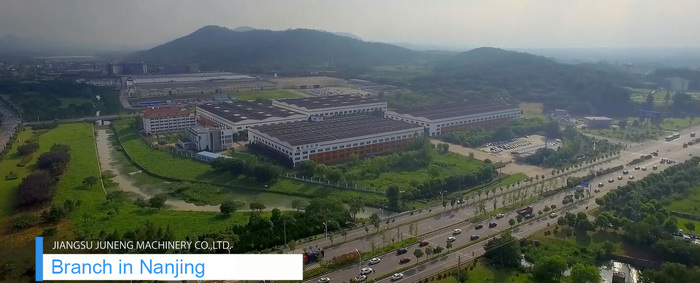

Introduction of Company:
Juneng Group employs a team of well-trained professional, adopts advance EPR production management model in cooperation with state–of–the–art apparatus and process i.e. CNC Turner, Machine Center, Highly Accuracy Test Instrumentation, Quality and Process Control System to ensure quality, stability, and reliability of every product.
QA/QC Department
1.Factory visit/ audit is required prior to other purchase
2.Inspection of material is required during in process manufacturing & prior shipment
3.Compliance to technical requirements
Juneng Group Service:
Pre-sale service:
1. Prompt in response
2. Price competitiveness as compare with other supplier
3. Factory visit is available if you need.
After service :
1. Technicians are availabled for overseas service.
2. Guide you do the normal maintenance.
3. The customer could get trained by our experienced tecnician.
Product Tags:
|
|
High Durability GXG Series Agitated Nutsche Filter And Dryer , 12 Months Warrenty Images
|
